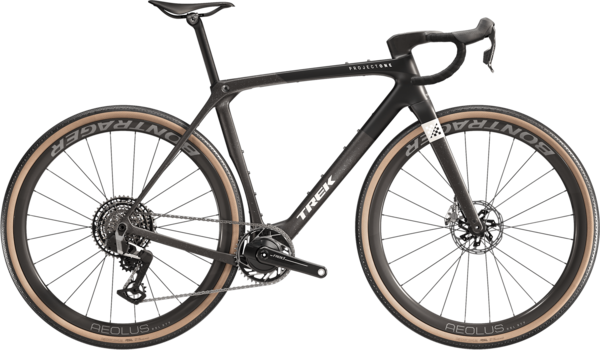

Trek Checkmate SLR 9 AXS
Details
Checkmate SLR 9 AXS is our fastest and lightest gravel race bike, built to chase podiums down rowdy roads. It combines a lightweight aero design with IsoSpeed road-smoothing tech and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. To keep you at the front of the pack, it's equipped with top-tier parts, like carbon wheels and SRAM's latest ergonomic RED AXS XPLR wireless drivetrain.
- You're after a gravel bike that's made to soar right off the starting line with Full System Foil aero tube shapes and an aero-yet-ergonomic one-piece bar/stem
- Comfort isn't kicked to the side, thanks to road-smoothing IsoSpeed tech and clearance room for tires up to 45mm wide (as measured)
- New Gravel Race geometry keeps you tucked out of the wind and poised for the attack without compromising the fit you need for comfort through long miles
- Our lightest gravel bike ever, with premium 800 Series OCLV Carbon that helps you save energy by reducing road chatter
- It comes equipped with plenty of mounts to add Adventure Bags and carry all your race-day essentials
| Frame size number | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Frame size letter | XS | S | M | ML | L | XL |
| Wheel Size | 700c | 700c | 700c | 700c | 700c | 700c |
| Seat Tube (cm) | 37.3 | 41.4 | 45.5 | 50 | 53.7 | 58.3 |
| Seat tube angle (degrees) | 73.9 | 73.9 | 73.7 | 73.5 | 73.6 | 73.7 |
| Head tube length (cm) | 9.1 | 10.6 | 12.6 | 15 | 17.4 | 19.9 |
| Head angle (degrees) | 71 | 71.3 | 71.5 | 71.7 | 72 | 72.4 |
| Effective top tube (cm) | 53.2 | 54 | 55.5 | 57 | 58.1 | 59.2 |
| Bottom bracket drop (cm) | 8 | 8 | 8 | 8 | 8 | 8 |
| Chain stay length (cm) | 42.6 | 42.6 | 42.6 | 42.6 | 42.6 | 42.6 |
| Offset (cm) | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 |
| Trail (cm) | 7.2 | 7 | 6.8 | 6.7 | 6.5 | 6.2 |
| Wheelbase (cm) | 100.3 | 101.1 | 102.2 | 103.5 | 104.5 | 105.4 |
| Standover (cm) | 71.8 | 74.7 | 78.2 | 81.6 | 85.1 | 88.6 |
| Frame reach (cm) | 38 | 38.5 | 39.2 | 39.9 | 40.4 | 40.9 |
| Frame stack (cm) | 52.5 | 54 | 56 | 58.4 | 60.8 | 63.3 |
| Saddle rail height min (w/short mast) (cm) | 54.9 | 59 | 63.1 | 67.1 | 71.3 | 75.4 |
| Saddle rail height max (w/short mast) (cm) | 61.4 | 65.5 | 69.6 | 73.6 | 77.8 | 81.9 |
| Size | Rider Height | Inseam |
|---|---|---|
| XS (cm) | 143 - 158 cm | 67 - 74 cm |
| XS (in) | 4'8" - 5'2" | 29" - 30" |
| S (cm) | 158 - 162 cm | 74 - 76 cm |
| S (in) | 5'2" - 5'4" | 29" - 30" |
| M (cm) | 162 - 173 cm | 76 - 81 cm |
| M (in) | 5'4" - 5'8" | 30" - 32" |
| ML (cm) | 173 - 179 cm | 81 - 84 cm |
| ML (in) | 5'8" - 5'10" | 32" - 33" |
| L (cm) | 179 - 188 cm | 84 - 88 cm |
| L (in) | 5'10" - 6'2" | 33" - 35" |
| XL (cm) | 188 - 213 cm | 88 - 100 cm |
| XL (in) | 6'2" - 7'0" | 35" - 39" |
Specs
| Frame | 800 Series OCLV Carbon, IsoSpeed, hidden fender mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle |
|---|---|
| Fork | Checkpoint SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru axle |
| Wheels | F: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle R: Bontrager Aeolus RSL 37V, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
| Tires | Bontrager Girona RSL GR, Tubeless Ready, aramid bead, 220 tpi, 700x38mm |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Crankset | SRAM RED XPLR, power meter, 42T, DUB wide |
| Shifters | SRAM RED AXS E1 |
| Rear Derailleur | SRAM RED XPLR eTap AXS, 46T max cog |
| Cassette/Freewheel | SRAM XG-1391, 10-46T, 13 speed |
| Chain | SRAM RED E1, 12 speed |
| Rotors | SRAM Paceline X, rounded, centerlock, 160mm |
| Handlebars | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop |
| Seatpost | KVF aero carbon seatpost, 5mm offset |
| Saddle | Aeolus RSL, carbon rails |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Trek Black/Matte Carbon Smoke / Medium/Large / 700C | 197216000518 | 5319550 | 5319550 |
